Deep Drilling

Context: India’s deep-drilling mission in Koyna, Maharashtra, is dedicated to investigating reservoir-triggered earthquakes and broadening our geological understanding.

Scientific Deep Drilling:

• Scientific deep drilling involves strategically drilling boreholes to observe and analyze deeper parts of the Earth’s crust, offering insights into earthquakes, geological history, rock types, energy resources, and more.

Benefits of Deep Drilling:

• Enhanced Understanding of Earthquakes:
  • Direct, in-situ observations of fault lines and earthquake behavior.
  • Unique insights into reservoir-triggered earthquakes in the Koyna-Warna region.
• Geological Knowledge:
  • Access to previously unknown data about the Earth’s crust composition and structure.
  • Validation or refutation of surface study models.
• Understanding Earth’s History:
  • Insights into the planet’s geological history, rock types, and climate changes.
• Life and Biological Studies:
  • Study of microbes thriving in deep, extreme environments.
  • Potential discovery of new molecules and industrial applications.

Challenges in Deep Drilling:

• Technical Difficulties:
  • Increased hook load capacity requirements for deeper boreholes.
  • High-pressure demands to lift drill cuttings from greater depths.
• Geological Complexities:
  • Navigating through fractured rocks and fault zones.
  • Managing the loss of drilling mud and potential water inflow.
• Environmental Conditions:
  • High temperatures and pressure in the Earth’s interior.
  • Harsh weather conditions for continuous drilling operations.
• Labor and Capital Intensive Nature:
  • Need for highly skilled and trained technical personnel for 24/7 engagement.
• Risk of Abandonment:
  • Possibility of having to abandon the borehole if severe issues arise.
  • Difficulty in ensuring continuous and long-term operations.

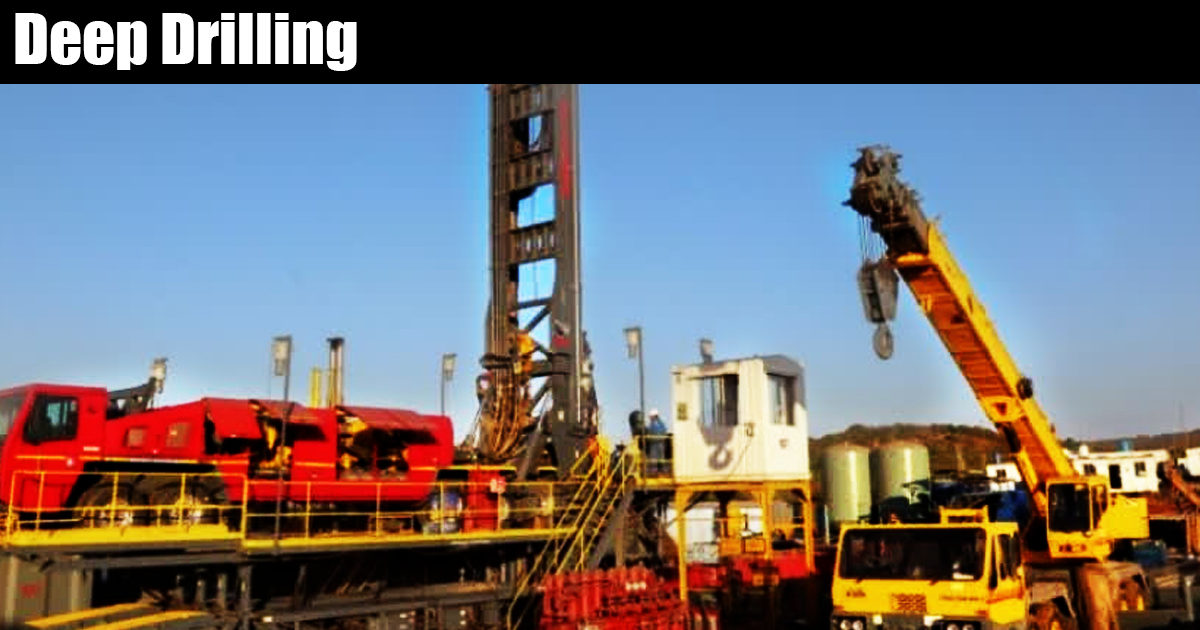

Drilling Technique at Koyna:

• Borehole Specifications: Approximately 0.45 m wide at the surface and a depth of roughly 3 km.
• Hybrid Technique: Combines mud rotary drilling and percussion drilling (air hammering).
  • Mud Rotary Drilling:
    • Uses a rotating steel drilling rod with a diamond-embedded drill bit.
    • Drilling mud acts as a coolant and lubricant, bringing up rock cuttings.
    • Debris moves through an annular space due to drilling mud pressure.
  • Air Hammering:
    • Utilizes compressed air to deepen the borehole and flush out debris.
  • The choice of drilling technique depends on site requirements like rock type, presence of fractured rock, water inflow zones, and core sample collection needs, though Koyna is equipped for both techniques.

Koyna Dam:

• Located in Koyna Nagar, Satara district, Maharashtra, the Koyna Dam is a prominent rubble-concrete structure built on the Koyna River, a tributary of the Krishna River.
• The Koyna Hydroelectric Project is the largest completed hydroelectric power plant in India, with a total installed capacity of 1,920 MW, playing a crucial role in flood management.
• Its catchment area impounds the Koyna River, forming the Shivsagar Lake.
